PE Coated Steel Pipe

NOVA™ for extrusion application

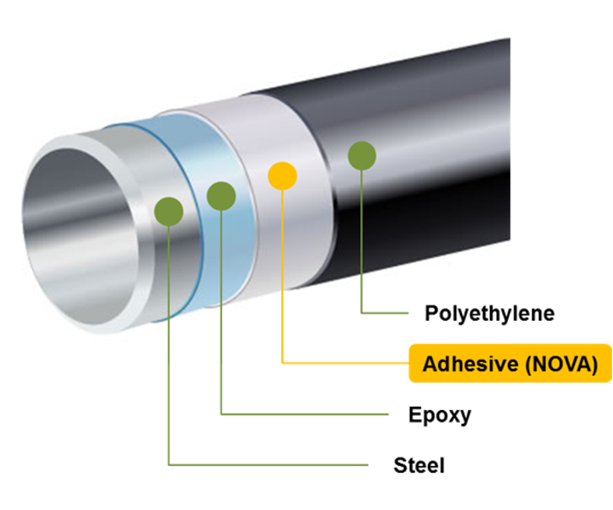

The thermoplastic adhesive resin applied to the tie layer of the
3-layer PE coating pipe. First, pre-heated steel pipe coated by epoxy resin(FBE: Fusion Bonded Epoxy). Second, NOVA™ bonds to the fusion-bonded epoxy basecoat and serves as a high-performance bonding layer for the extruded polyethylene(PE) topcoat layer. The 3-layer PE coating technology mostly preferred globally as a corrosion protection option for oil and gas pipe and water pipe projects. When used as a tie-layer with compatible FBE basecoats and PE topcoats in 3-layer coating systems, NOVA™ provides superior adhesion performance in demanding end-use applications.


  • Excellent corrosion resistance
  • Advanced adhesion to substrates and topcoat
  • Excellent long-term adhesion durability
  • Very good chemical resistance
  • Good impact resistance
  • Maintain polyolefin properties
  • Non-hazardous

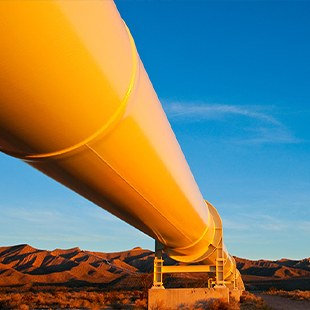

Oil & Gas Pipeline (in the field)

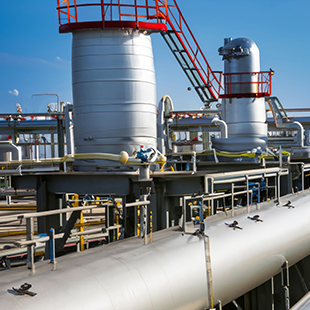

Oil & Gas Pipeline (Refinery)

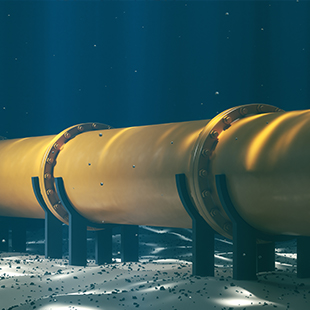

3 Layer Coating System for Oil & Gas Pipe (Under Water)


Grade Description Major Application TDS MSDS
NOVA™ APR2511 Modified polyethylene adhesive resin for PE coated steel pipe in 3 layer coating system Adhesive resin for gas & oil pipe 200414_NOVA_APR2511_Pellet_TDS_TWOHChem.pdf첨부파일 200413_NOVA_APR2511_Pellet_SDS_TWOHChem.pdf첨부파일
